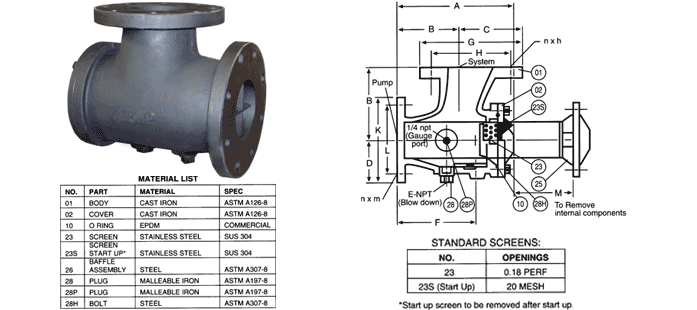

The Model SA Suction Diffuser connects to the suction side of a pump, and incorporates the functions of a strainer, flow straightener, and elbow in one compact component. And it can also reduce if needed. So not only does it remove any foreign material that may enter the pump, it also allows for proper flow conditions to the pump despite having a close elbow.
The SA is made with a cast iron body, and stainless steel strainer basket. Comes with 150# flanged connections. Other configurations are also possible. Contact the factory for details.
swipe to see more products
| MODEL |
SIZE
(in)
|
STD SCREEN |
PRES
(psi)
|
WT
(lbs)
|
A
(in)
|
B
(in)
|
C
(in)
|
D
(in)
|
E
(in)
|
F
(in)
|
G
(in)
|
H
(in)
|
J
(in)
|
K
(in)
|
L
(in)
|
M
(in)
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SA | 2-1/2 X 2-1/2 | 0.18 | 175 | 36 | 9 | 4-3/4 | 3-1/2 | 3-1/2 | 1 | 5-5/8 | 7 | 5-1/2 | 4 X 3/4 | 7 | 5-1/2 | 7-3/8 |
| SA | 3 X 2-1/2 | 0.18 | 175 | 41 | 10 | 5-1/2 | 3-3/4 | 3-1/2 | 1 | 6-7/8 | 7-1/2 | 6 | 4 X 3/4 | 7 | 5-1/2 | 7-3/8 |
| SA | 3 X 3 | 0.18 | 175 | 42 | 10 | 5-1/2 | 3-3/4 | 3-3/4 | 1 | 6-7/8 | 7-1/2 | 6 | 4 X 3/4 | 7-1/2 | 6 | 7-3/8 |
| SA | 4 X 3 | 0.18 | 175 | 48 | 10 | 6-1/2 | 4-1/2 | 3-.3/4 | 1 | 6-7/8 | 9 | 7-1/2 | 8 X 3/4 | 7-1/2 | 6 | 7-3/8 |
| SA | 4 X 4 | 0.18 | 175 | 12-5/8 | 6-1/2 | 4-1/2 | 1 | 7-5/8 | 9 | 7-1/2 | 9 | 7-1/2 | 8 X 3/4 | 9 | 7-1/2 | 9-1/4 |
| SA | 5 X 4 | 0.18 | 175 | 70 | 12-5/8 | 7-1/2 | 5 | 4-1/2 | 1 | 7-5/8 | 10 | 8-1/2 | 8 X 7/8 | 9 | 7-1/2 | 9-1/4 |
| SA | 5 X 5 | 0.18 | 175 | 73 | 14-1/4 | 7-1/2 | 5 | 5 | 1 | 9 | 10 | 8-1/2 | 8 X 7/8 | 10 | 8-1/2 | 9-1/4 |
| SA | 6 X 4 | 0.18 | 175 | 87 | 12-5/8 | 8 | 5-1/2 | 4-1/2 | 1 | 7-5/8 | 11 | 9-1/2 | 8 X 7/8 | 9 | 7-1/2 | 9-1/4 |
| SA | 6 X 5 | 0.18 | 175 | 93 | 14-1/4 | 8 | 5-1/2 | 5 | 1-1/4 | 9 | 11 | 9-1/2 | 8 X 7/8 | 10 | 8-1/2 | 10-5/8 |
| SA | 6 X 6 | 0.18 | 175 | 120 | 16-3/8 | 8 | 5-1/2 | 5-1/2 | 1-1/4 | 10-1/8 | 11 | 9-1/2 | 8 X 7/8 | 11 | 9-1/2 | 11-3/4 |
| SA | 8 X 6 | 0.18 | 175 | 142 | 16-3/8 | 9 | 6-3/4 | 5-1/2 | 1-1/4 | 10-1/8 | 13-1/2 | 11-3/4 | 8 X 7/8 | 11 | 9-1/2 | 12-3/4 |
| SA | 8 X 8 | 0.18 | 175 | 229 | 20-1/2 | 9 | 6-3/4 | 6-3/4 | 1-1/4 | 11 | 13-1/2 | 11-3/4 | 8 X 7/8 | 13-1/2 | 11-3/4 | 15-3/8 |
