The Model BST1 is a 316 stainless steel basket strainer can be used in applications for chemicals, oil, gas, or steam where protection from foreign matter in a pipeline is required.
They are constructed from cast steel castings with a machined basket seat for quality. Perforated 304 stainless steel screens are welded along the seam for maximum strength. If the media is not specified, screens for water will be supplied. Options include epoxy coating and galvanizing, special flange drilling, and the addition of magnets.
The stainless steel body is ideal for chemicals that may be corrosive to iron or carbon steel. And they are also needed for sanitary or food service.
Non-Shock Working Pressure is 300psi at 1125F for steam, and 720psi at 100F for Water/Oil/Gas (WOG).
Cleaning of the strainer is accomplished by removing the cover and pulling out the basket. The high pressure/temperature gasket between the body and cover is spiral wound 304 stainless steel. The BIT strainers have carbon steel hex head cap screws and come with a tapped and plugged NPT drain connection.
For the duplex version of this strainer, that allows basket cleaning without system shut down, see the Model DST.
See the maintenance instructions for more detailed information on servicing the strainer, and the submittal sheet for addtional technical data.

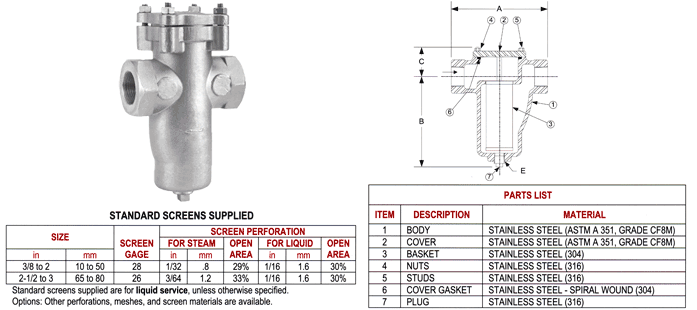

| MODEL |
SIZE
(in)
|
ENDS | CLASS |
PRESS (STEAM)
(psi)
|
PRESS (WOG)
(psi)
|
WT
(lbs)
|
A
(in)
|
B
(in)
|
C
(in)
|
E
(in)
|
ITEM NO |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BST1 | 3/8 | THREAD | 300 | 300 | 720 | 6 | 4-9/16 | 4 | 3-1/8 | 3/8 | BST1038 |
| BST1 | 1/2 | THREAD | 300 | 300 | 720 | 6 | 4-9/16 | 4 | 3-1/8 | 3/8 | BST1050 |
| BST1 | 3/4 | THREAD | 300 | 300 | 720 | 6 | 4-9/16 | 4 | 3-1/8 | 3/8 | BST1075 |
| 1 | 300 | 300 | 720 | 9 | 5-5/16 | 4-7/8 | 3 | 3/8 | BST1100 | ||
| 1-1/4 | 300 | 300 | 720 | 14 | 6-5/16 | 6-1/2 | 4-1/8 | 1/2 | BST1125 | ||
| 1-1/2 | 300 | 300 | 720 | 6-5/16 | 6-1/2 | 4-1/8 | 1/2 | BST1150 | |||
| BST1 | 2 | THREAD | 300 | 720 | 27 | 8-1/4 | 7-7/8 | 4-3/4 | 3/4 | BST1200 | |
| BST1 | 2-1/2 | THREAD | 300 | 300 | 720 | 34 | 9-5/8 | 8-3/4 | 4 | 1 | BST1250 |
| BST1 | 3 | THREAD | 300 | 300 | 720 | 60 | 11-1/4 | 11-3/8 | 5-7/8 | 1 | BST1300 |
