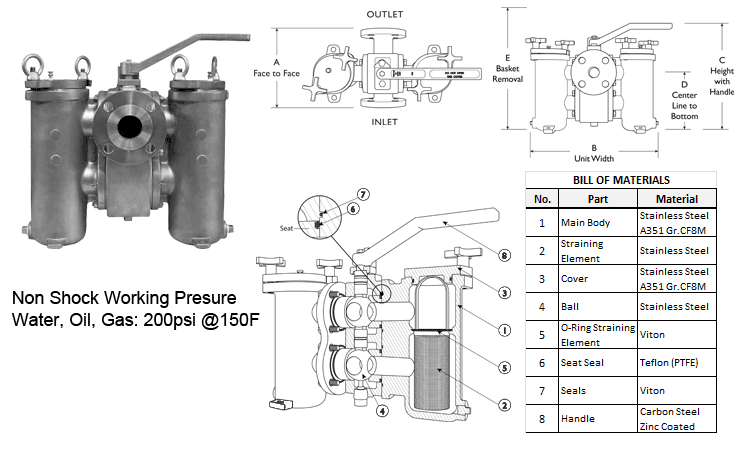

The Model DSF-T is a stainless steel 150# flanged duplex strainer for use in continuous flow applications to avoid shutting down the system for cleaning. Not recommended for steam service. Simply moving the handle to the right or left will divert flow to chamber under the handle, which allows for cleaning the basket not in use.
This duplex is designed with two stainless steel balls that efficiently divert the piopeline flow from one basket chamber to the other. PTFE seats ensure a positive seal and help to prevent seepage into the chamber that is being cleaned.
The low torque handle is easy to operate. And there are no special tools required to access and remove the straining element, which can be any configuration of perforation or mesh lining.
Non-shock Working pressure is 200psi @ 150F, and max liquid is 200psi @ 150F. Standard screen 1/16" (.0625), 41% Open Area. Not recommented for steam. Also available with NPT thread connections.
See the submittal sheet for additional technical data.
| MODEL |
SIZE
(in)
|
ENDS | BODY MTL | Cv |
WT
(lbs)
|
A
(in)
|
B
(in)
|
C
(in)
|
D
(in)
|
E
(in)
|
ITEM NO |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DSFT | 1 | 150# FLG | 316 SS | 14 | 47 | 7 | 12-15/16 | 11 | 5-13/16 | 15-3/8 | DSFT0100 |
| DSFT | 1-1/4 | 150# FLG | 316 SS | 19 | 74 | 9-3/8 | 15-1/8 | 14-1/4 | 8-5/16 | 21-5/16 | DSFT0125 |
| DSFT | 1-1/2 | 150# FLG | 316 SS | 24 | 74 | 9-3/8 | 15-1/8 | 14-1/4 | 8-5/16 | 21-5/16 | DSFT0150 |
| DSFT | 2 | 150# FLG | 316 SS | 42 | 122 | 10-5/8 | 18-3/8 | 17-3/4 | 10-3/4 | 26-3/8 | DSFT0200 |
| DSFT | 2-1/2 | 150# FLG | 316 SS | 68 | 237 | 13-1/2 | 22 | 22 | 13-3/4 | 35 | DSFT0250 |
| DSFT | 3 | 150# FLG | 316 SS | 105 | 238 | 13.5 | 22 | 22 | 13-3/4 | 35 | DSFT0300 |
| DSFT | 4 | 150# FLG | 316 SS | 180 | 374 | 16 | 26-7/8 | 25-1/4 | 15-7/8 | 41 | DSFT0400 |
